STANDARD 1" THICK INSULATING CORE FITS SERIES 77, 77XL, 808 AND 303

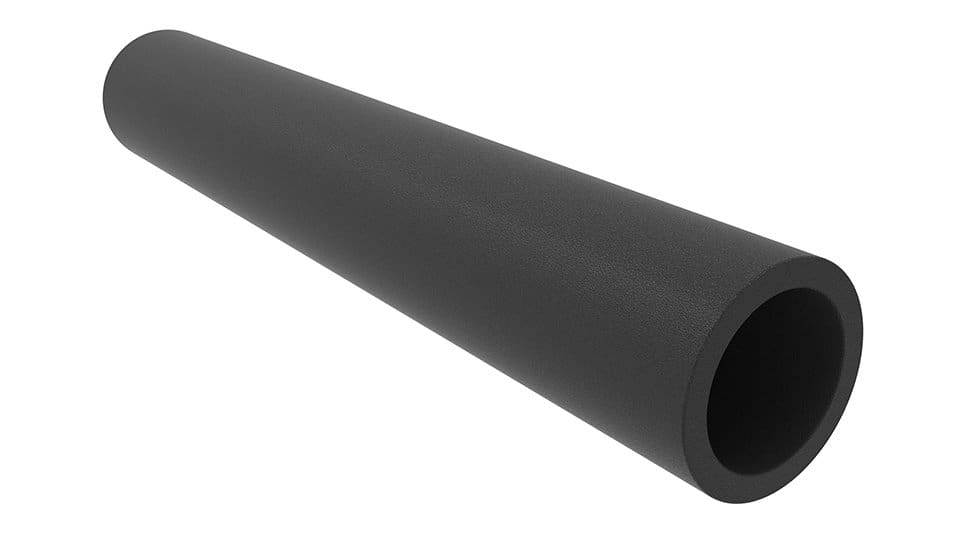

VIC™ STRAIGHTS INSULATION
STANDARD OPERATING
TEMPERATURE RANGE
-60°F to +350°F or -51°C to 176°C
STATIC R-VALUE
12.53 PER 2 INCHES
STATIC K-FACTOR
0.174 BTU-IN/HR-FT2-F
STANDARD COLORS
High Pigment Black
Silver
Custom on Request
INDUSTRIES SERVED
Mining
Chemical / Petrochemical
Food & Beverage
Construction
Agriculture
Energy / Power
Water / Wastewater
5-Year Limited Product Warranty. FDA Approved for Incidental Food Contact. Made in the USA.
FEATURES
Fully Encapsulated
Durable / Impact Resistant
High Tensile
Removeable / Reusable
Waterproof
Chemical Resistant
Lightweight
Interlocking Panels
Integrated Drip Edges
BENEFITS
Eliminates CUI
Engineered Solutions
Faster, Safer Installation
Thermal Stability
Energy Efficient
Operationally Efficient
Withstands Harsh Environs
Lower TCO
20+ Year Lifespan
| Size | ID | OD | L | Part # | Description |
|---|---|---|---|---|---|
| 1.5″ | 2.5 | 5 | 36 | VST-2.5×5 | VIC™ STYLE STRAIGHT 2.5″ ID x 5″ OD |
| 2″ | 2.75 | 5.25 | 36 | VST-2.5×5 | VIC™ STYLE STRAIGHT 2.75″ ID x 5.25″ OD |
| 3″ | 4 | 6.5 | 36 | VST-4X6.5 | VIC™ STYLE STRAIGHT 4″ ID x 6.5″ OD |
| 4″ | 5 | 7.5 | 36 | VST-5×7.5 | VIC™ STYLE STRAIGHT 5″ ID x 7.5″ OD |
| 6″ | 6 | 8.5 | 36 | VST-6×8.5 | VIC™ STYLE STRAIGHT 6″ ID x 8.5″ OD |
| 8″ | 9 | 11.5 | 36 | VST-9×11.5 | VIC™ STYLE STRAIGHT 9″ ID x 11.5″ OD |
| 10″ | 11.25 | 13.75 | 36 | VST-11.25×13.75 | VIC™ STYLE STRAIGHT 11.25″ ID x 13.75″ OD |
| 12″ | 13.25 | 15.75 | 36 | VST-13.25×15.75 | VIC™ STYLE STRAIGHT 13.25″ ID x 15.75″ OD |
COMPARE DRAGON JACKET TO OTHER INSULATION OPTIONS
| Dragon Jacket Insulation™ | Polyiso Fabricated Panel System | Fiberglass & Cladding | |
|---|---|---|---|
| 5-Year Warranty | ✔ | ✘ | ✘ |
| Waterproof | ✔ | ✘ | ✘ |
| CUI Resistant | ✔ | ✘ | ✘ |
| 95+ MPH Wind Resistant | ✔ | ✔ | ✘ |
| Extended 20+ Year Life | ✔ | ✔ | ✘ |
| Impact Resistant | ✔ | ✘ | ✘ |
| Uninstall, Inspect, Re-Install | ✔ | ✘ | ✘ |
| UV Resistant | ✔ | ✘* | ✘* |
*UV resistance may be achieved with additional coatings but is not guaranteed with the base product.
