Featured Project – Dragon Jacket Custom Insulation Solutions Help Protect Wellheads From Freezing

Project Scope:

• 40 Wellhead Insulation Kits (250+ To-Date)
• Parts Created Using 3D Parts Scanning
• Each Kit Required a Degree of Customization

Project Results:

• Completed On-Time & Within Budget
• Insulation Protects Wellheads and Casing Isolation Valves from Freezing Temperatures, Harsh Winds and Frequent Removal and Reinstallation
• Insulation is Low Maintenance and Requires No Special Care Under Normal Operations

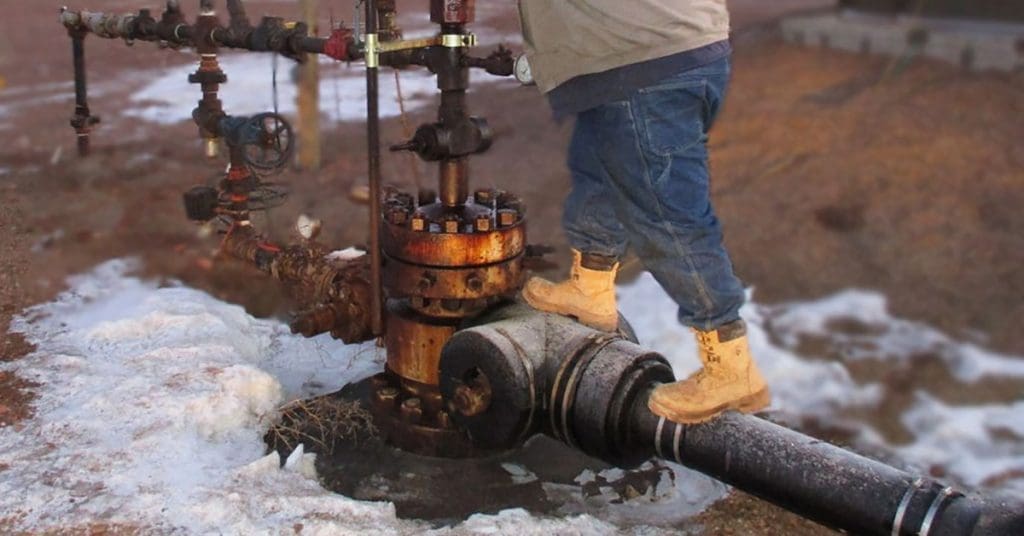

In the harsh North Dakota winters, where temperatures can drop to -40, the oil and gas industry needs insulation products to protect their pipelines from freezing. One particular area of concern is the wellhead, where irregularly-shaped components and varied orientations make protection difficult, if not impossible, with standard insulation options.

In order to protect their wellhead componentry, RTR Oilfield Services called upon Dragon Jacket for a customized insulation solution. Working off 3D scans, Dragon Jacket designed and produced custom insulation parts for 40 wellheads to ensure proper fitment and protection. The resulting insulation protects the wellhead and casing isolation valve and is durable enough to withstand freezing temperatures, harsh winds, and regular removal and reinstallation by wellhead inspection personnel.
